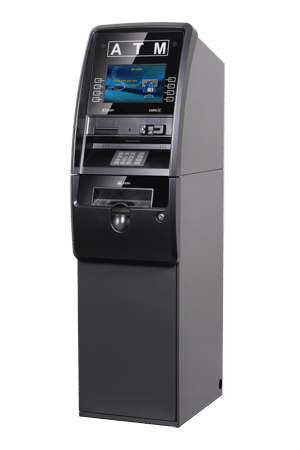

Genmega Onyx ATM
The Genmega Onyx brings a modern, upscale look to the ATM market, combining advanced technology, strong security features, and a sleek design built to fit high-end locations such as hotels, clubs, gas stations, retail stores, and more.
The Future of ATMs in a Sleek Upscale Package
The Onyx series was designed to deliver the appearance of a high-end financial ATM while offering the reliability and functionality business owners need. With its contemporary design and customer-friendly interface, the Genmega Onyx helps create a more professional experience and encourages more transactions.
Modern Display Options
The Genmega Onyx includes a 10.1” wide TFT LCD color screen with 1280 x 800 resolution. A 12.1” touch screen option is also available.
Integrated Illuminated ATM Sign
A high-visibility LED sign helps attract customers and make the ATM easier to notice inside your location.
Customizable User Experience
The Onyx supports custom screen advertisements and custom screen graphics, giving businesses an opportunity to display branding or promotional messages directly on the ATM.
Printer Options
The machine includes a standard 56mm printer, with an optional 80mm 3” printer capable of receipt graphics.
Secure PIN Entry
The Onyx features a 16-key alphanumeric PIN entry device with PCI 3.0 certified EPP and LED illumination.
EMV Card Reader
The machine includes an EMV dip-type card reader for secure card transactions.
ADA-Friendly Design
Built with accessibility in mind, the Onyx includes voice guidance, lighted transaction guidance, and an accessible keypad layout.
Vault & Lock Options
The Genmega Onyx includes a UL291 business hours vault with an inset door and is available with both dial and electronic locks.
Cash Dispenser Options
The Onyx supports multiple dispenser configurations to meet different transaction volumes and cash capacity needs, including:
- 800-note fixed cassette
- 1,000-note removable cassette
- Up to 4 x 1,700-note removable cassettes
- Up to 4 x 2,000-note removable cassettes
The Onyx supports all Genmega dispensers and can also be ordered as a shell for use with an existing CDU.
Technical Specifications
CPU
Cortex-A8 CPU
800MHz
DDR2 256MB SRAM memory
512MB Flash memory
Windows CE 6.0
Communication
56,000 bps dial-up modem
TCP/IP Ethernet connection
Onboard SSL
Dimensions
Height: 56.47”
Width: 15.82”
Depth: 22.32”
Weight: 206 lbs
Power Requirements
110/220 VAC ± 10%
50/60 Hz
85.5 Watts
The Future of ATMs in a Sleek Upscale Package
The Genmega Onyx is a strong option for businesses that want more than a basic ATM. Its upscale appearance, illuminated branding, flexible dispenser options, ADA-friendly features, and security-focused design make it a smart choice for locations that want a professional ATM experience.
FAQs
Yes. The Onyx was designed with a sleek, upscale appearance that makes it a great fit for hotels, clubs, retail stores, gas stations, and other professional environments.
Yes. It supports custom on-screen advertisements and graphics, allowing businesses to display promotional or branded content.
The Onyx includes a 10.1” wide LCD screen and also offers an optional 12.1” touch screen.
The Onyx supports multiple cassette options, including fixed and removable cassette configurations, depending on capacity needs.
Yes. It includes features such as voice guidance, lighted transaction guidance, and an accessible keypad layout.
